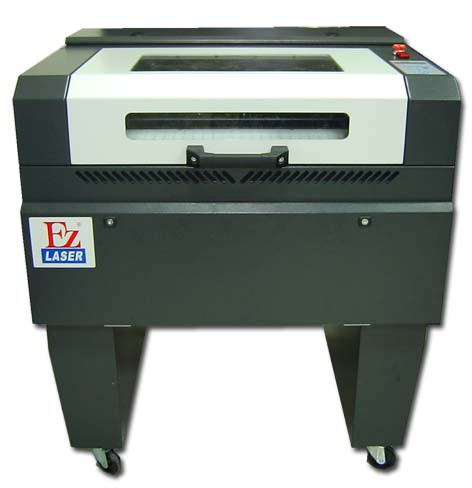

Features of EZ LASER - LEM Series
	Με το νέο οικονομικό μοντέλο LEM της Laser Life, μπορείτε να κάνετε βαριά χρήση σφραγίδας με εξαιρετικό αποτέλεσμα και ταχύτατα. Επίσης μπορείτε να εκτελέσετε και οποιαδήποτε εργασία κοπής ή χάραξης στον τομέα της επιγραφής & σήμανσης ενώ παράγει εξαιρετική φωτογραφική χάραξη ! Διαθέσιμο σε 25, 60 & 100watt.
	--mV-guild design to make the X-axis slider moving stable and easy to assemble. -- Path order to be assigned automatically by pen-color ranking. -- EZ-LASER driver to link LEM with most popular Windows based software such as CorelDraw. -- Vector & Raster operating mode of engraving to enable combining or independent work. -- Reliable module design to assure easy maintenance. -- Directly changing parameters on operation panel without sending files from computer too many times in order to get the optimum value for workpiece against time.

	-- Adjustable velocity of motorized Z-axis pallet to allow fine tuning of focus length.

	-- Focus lens of LEM

Applications:

Acrylic Display Stand
Decorations
Signage
Gaskets
Architecture models
2D Prototypes
Marquetry
Die Board
Embroidery and Textile
Router Template Stencils
Plastic Fabrication
Photo Frame

Specifications:

EZ LASER - LEM Series

LEM LASER 25W

LEM LASER 60W

LEM LASER 100W

Πηγή Laser

RF 25W CO2 laser tube (Air-cooled 32watt output)

RF 60W CO2 laser tube (Air-cooled)

DC 100W CO2 laser tube (Water-cooled)

Ωφέλιμη περιοχή εργασίας

660.4 x 304.4mm

Διαστάσεις μηχανήματος

960(W)x765(D)x1040(H)

Μέγιστη περιοχή Τοποθ. Αντικειμ

685.8 x 330.2mm

Maximum Engraving Speed

1016 mm/sec (40 inch/sec)

Red Laser Pointer

Included

Speed

0.1-100%

Software

Compatible with most Windows Integrated program for graphics and character generation, such as CorelDraw

Motorized Z-axis adjustment

Motorized Ac motor

Resolution

800/400/267/200/160/133 dpi

X/Y Axis Motor

Stepping Motor

Computer Interface

Parallel Port

Focus Lens

2”

Optical design

Flying Optical Design

Windows Driver

Windows XP, 2000, NT

Power Requirement

110/220VAC 10A, 1 phase

110/220VAC 15A, 1 phase

Memory

64 MB

Weight

~200kg

Honeycomb Table

Optional (προαιρετικά)

Materials Applicable:
Acrylic, Veneer, MDF board, Wood, Plywood, Masonite , Rubber, Vinyl, Foam, Nylon, Cloth, Textile, Polycarbonate, Fabric, Chipboard, Cardboard, Paper, ABS, Polyester, PP, Leather.
