[ ΧΕΙΡOΚΙΝΗΤΗ ΠΡΕΣΣΑ ΓΙΑ TΡΟΥΚΣ - "Penta Tekstil" ]
Κάντε click για video παρουσίαση
[870 kb]

  • Cuts the hole and sets the grommet in one pass.


  • 1000pcs self-piercing, 3/8" (10mm) grommets and washers included.


  • Die set for 3/8" grommets mounted on the press.


  • Can be used either screwed to table or unmounted.


  • Beautiful blue and red finish.
It will provide you years of trouble free operation. The long handle gives you the leverage you need to punch through the thickest material. The adjustable stop screw, gives you just the right amount of pressure to close the grommet assembly. The die set can be changed, for use with different sizes and types. Perfect handy machine for fast Grommeting of many different types of materials .

--------------------------------------------------------------------------------------------------

Handy Press box

Περιεχόμενα πακέτου:1 πρέσσα (χειροκίνητη), adaptor 3/8", 2 ανταλλακτικά δακτυλίδια (rubber retainers), 1000 ζεύγη μπουντούζια 3/8" (χρώματος χρυσού- gold).

Διαστάσεις κουτιού: (21.5 x 9.5 x 23.5h) cm

Βάρος Κουτιού: 5.9 kg

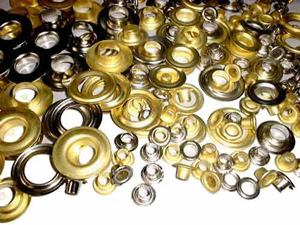

Self-Piercing grommets are grommets that pierce your material without pre-punching a hole. The self piercing grommets are made from heavier gauge solid brass sheet metal and work together with a unique washer allowing the grommet to pierce and set in a single action. Just place the grommet on the top die of the Handy Press, lay the washer on the bottom die, position your material and pierce and set in one action.

TYPE
CODE

A mm

B mm

C mm

D mm

E mm
Thickness mm

MEASUREMENT POINTS

3/16" grommet (5mm)
78
10
6
5
-
-
0,3

A Grommet head ψ
B Grommet height
C Grommet hole ψ
D Washer hole ψ
E Washer ψ
3/16" washer
79
-
-
-
6,5
10
0.3

3/8" grommet (10mm)
80
19
5,6
10
-
-
0,35
3/8" washer
81
-
-
-
10,8
18,5
0,35
7/16" grommet (12mm)
55
25
6,4
12
-
-
0,35
7/16" washer
56
-
-
-
14
24,5
0,35
9/16" grommet (15mm)
57
30
7
15
-
-
0,35
9/16" washer
58
-
-
-
17
2,5
0,35
Available non/self piercing grommets
1, 1/8" grommet (34mm)
63
44
8,5
34
-
-
0,7
1, 5/8" grommet (40mm)
65
62
14,4
40
-
-
0,5

GROMMET&WASHERS PACKAGING DETAILS
Size
Code
Color
Q.tity per pack
Pck Wght (kg)
3/16" (5mm)
78SH-79SH
Brass
2500
1,43
3/16" (5mm)
78SN-79SN
Nickel plated
2500
1,45
3/8" (10mm)
80SH-81SH
Brass
1000
1,55
3/8" (10mm)
80SN-81SN
Nickel plated
1000
1,57
7/16" (12mm)
55SH-56SH
Brass
500
1,36
7/16" (12mm)
55SN-56SN
Nickel plated
500
1,39
9/16" (15mm)
57SH-58SH
Brass
250
1,05
9/16" (15mm)
57SN-58SN
Nickel plated
250
1,05
All grommets and washers are made from solid brass
General box dimensions : (21.5 x 9.5 x 11.5h)cm
Each box has Gromm&washers at the specified quant. on the above chart.



Readily available die sets are specially made for the self-piercing grommets.
Easily interchangable for quick change of job requirements. Solidly sets the grommet into its place.
Code
Type
For grommet type
29DN
 3/16", 5mm Die-set
78SH-SN, 79SH-SN
30DN
 3/8", 10mm Die-set
80SH-SN, 81SH-SN
31DN
 7/16", 12mm Die-set
55SH-SN, 56SH,SN
32DN
 9/16", 15mm Die-set
57SH-SN, 58SH-SN

Συμπεριλαμβάνει: 1 πρέσσα (χειροκίνητη), adaptor 3/8", 2 ανταλλακτικά δακτυλίδια (rubber retainers), 1000 ζεύγη μπουντούζια 3/8" (χρώματος χρυσού- gold).
165,00 € + ΦΠΑ

(δεν περιλαμβάνονται εξοδα αποστολής)
